SPECIFICATIONS

ADI Pluto+ 70Mhz-6Ghz SDR Software Defined Radio AD9363 for Libiio iioscope SDRsharp Python

ADI Pluto+ is intended for educational, scientific and hobby use only. Please consciously abide by the laws and regulations of your country or region!

Features:

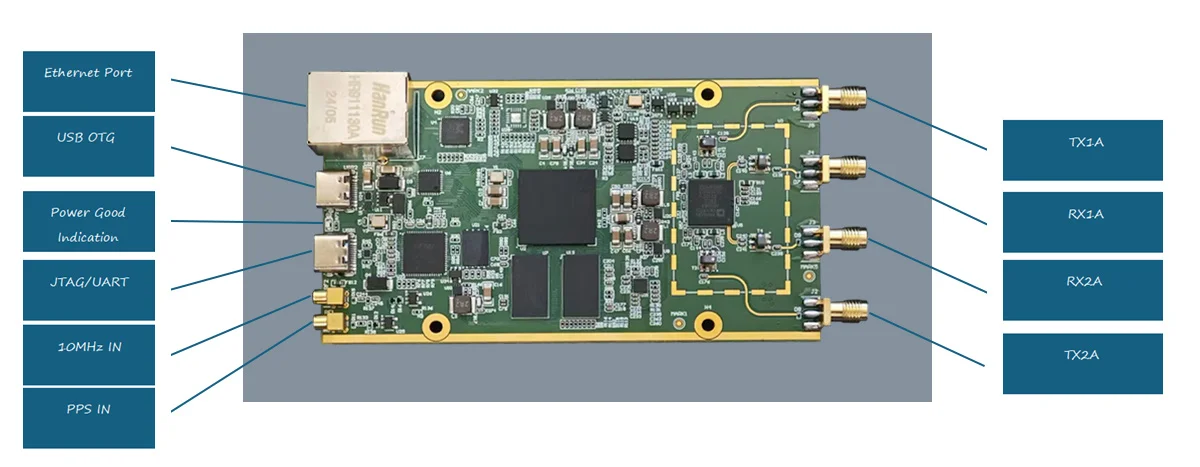

XC7z020-2CLG400I FPGA with 2-core Cortex A9

The AD9363 RFSOC is turned on in AD9361 mode. The frequency range is 70MHz~6GHz, and the maximum sampling rate is 61.44MHz

* 1GB  DDR3

* On-board JTAG circuit and USB to serial port.

* VCTCXO initial frequency accuracy is 0.5PPM, and it supports PPS or 10MHz external oscillator

* Gigabit Ethernet

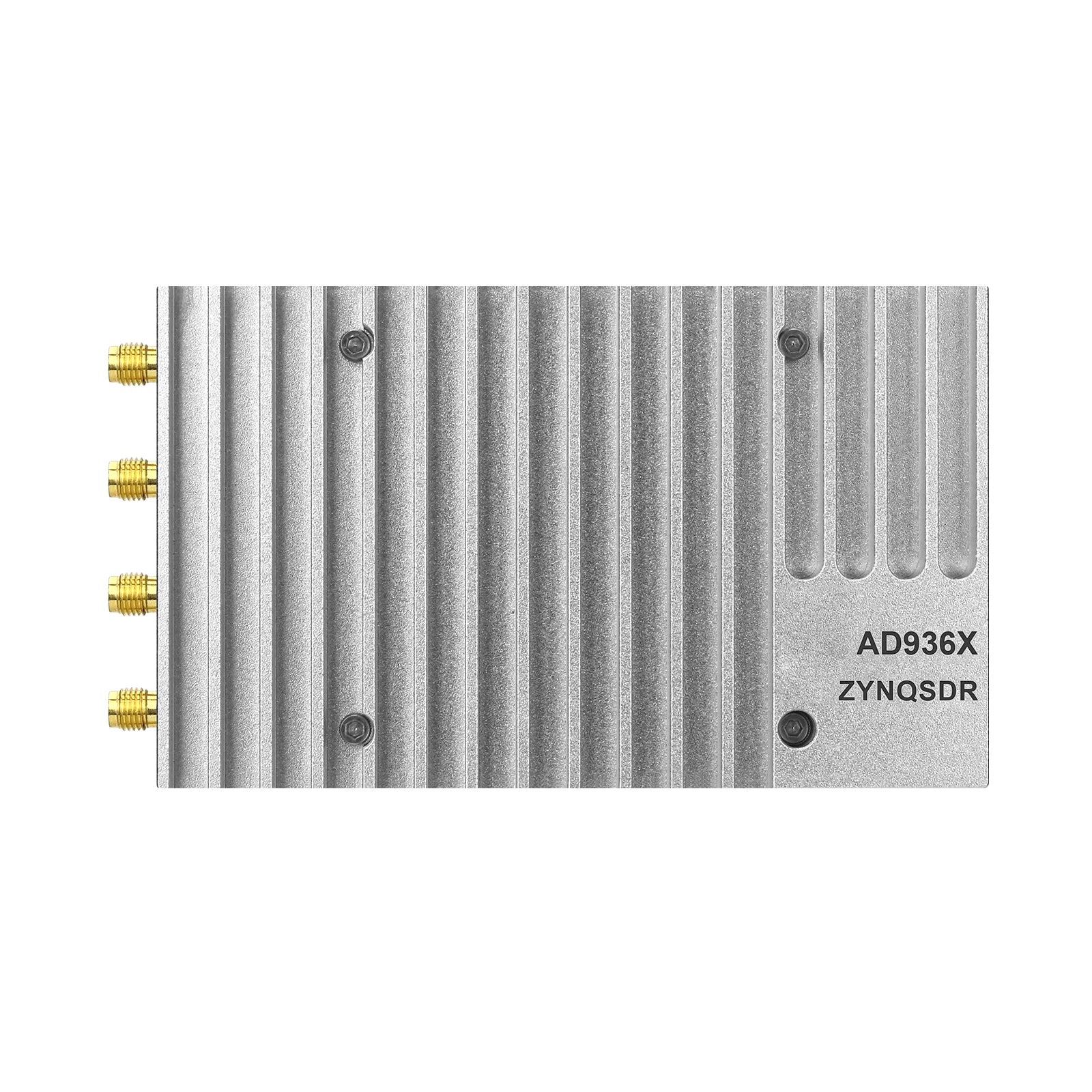

* CNC milled case

* The software interface is libiio. It can be connected to libiio-enabled software such as for iioscope, SDRsharp, Matlab and GNURadio.

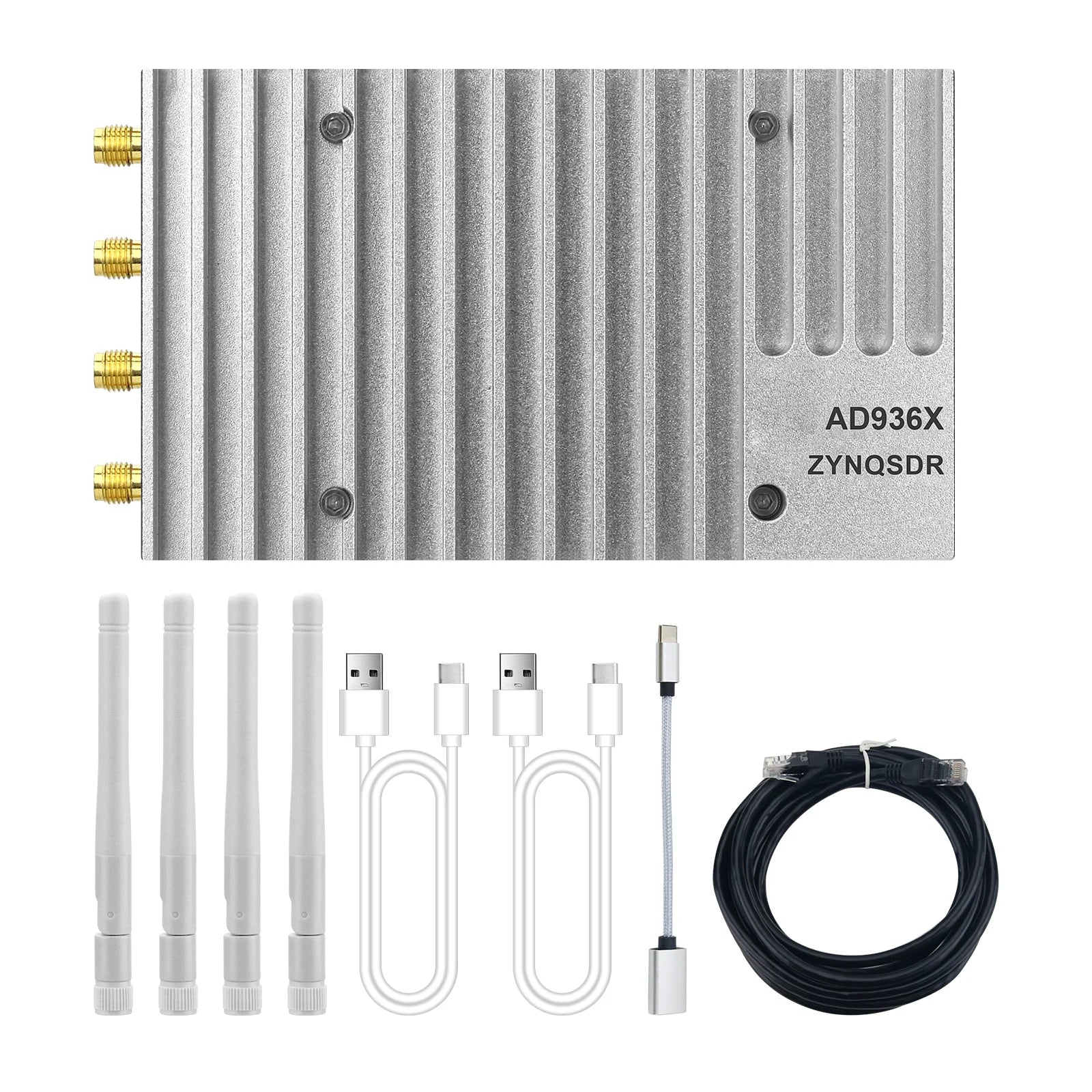

Package Included:

* 1 x Main unit

* 4 x Antennas

* 2 x USB cables

* 1 x Cable adapter

* 1 x Wrench

* 1 x Network cable

Packaging Details:

* G.W.: 0.6kg

Note:

* TF/SD card is not included.

* We only sell hardware, No firmware provided.

   (This product is compatible with many firmwares, and buyers can find firmwares on various websites.)

* to start the device, a SD card is required.
